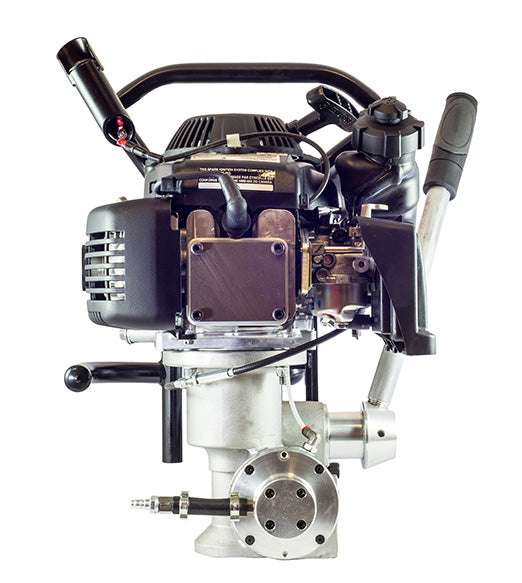

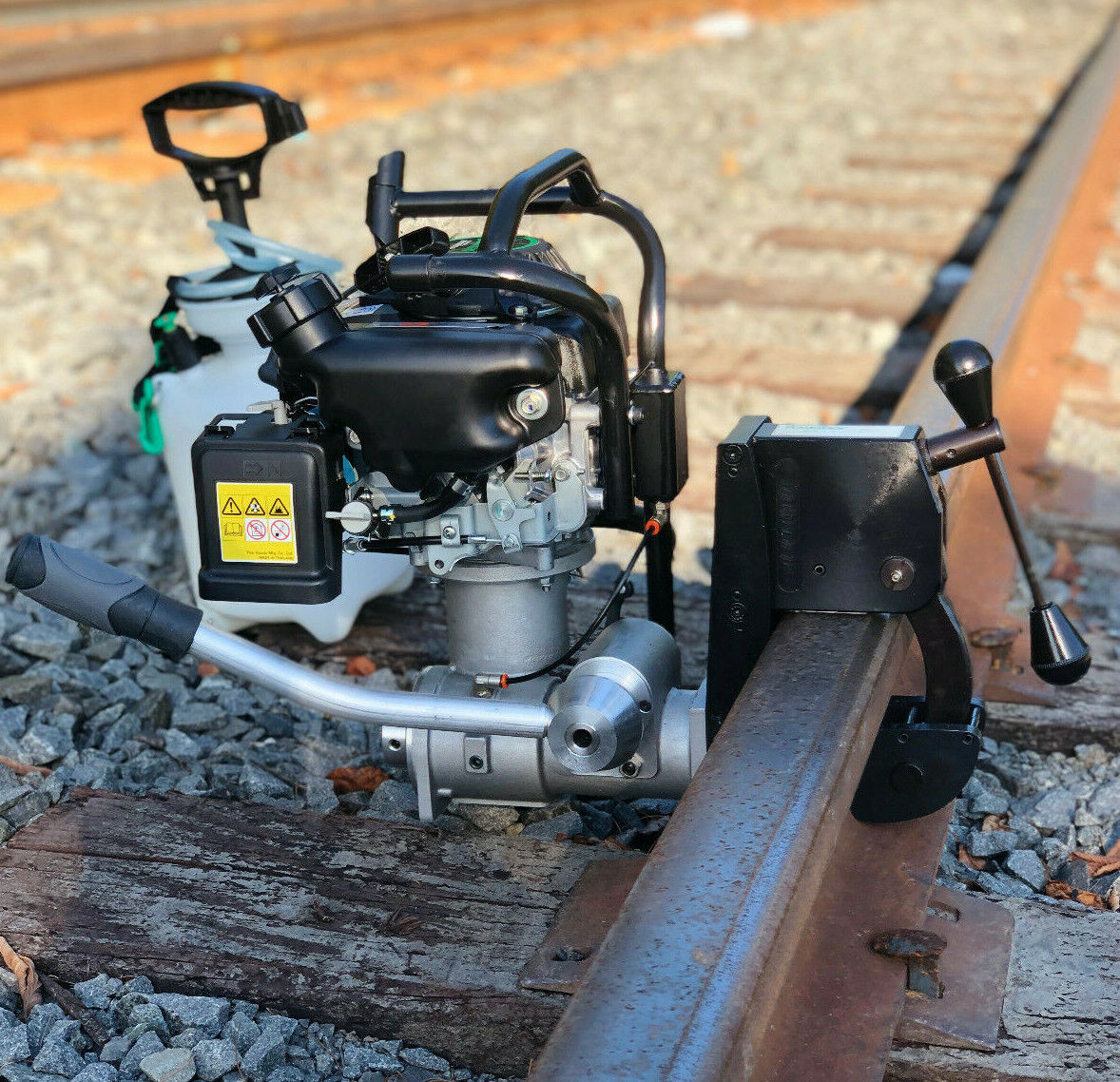

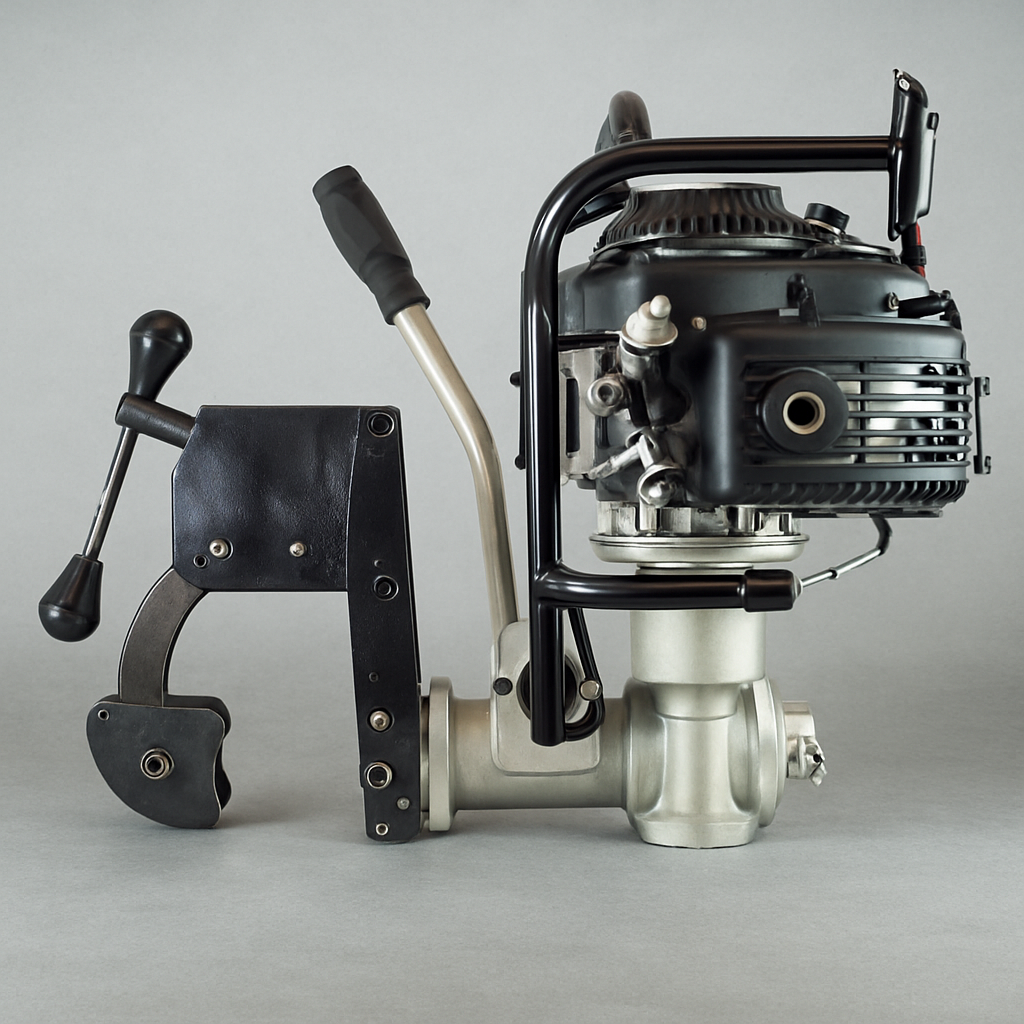

Rotabroach Rail Drilling Machine

Rotabroach Gasoline Engine Rail Drilling Machine – Efficient and Portable Rail Drilling Solution

The Rotabroach Gasoline Engine Rail Drilling Machine is a reliable, portable tool designed for precision drilling of rail tracks in demanding work environments. Engineered for railway maintenance and construction professionals, this machine combines powerful performance, ease of use, and robust durability to handle a variety of rail drilling applications with exceptional efficiency.

Key Features:

1. Powerful Gasoline Engine:
   The machine is equipped with a high-performance gasoline engine that provides ample power for fast and accurate drilling, even in tough conditions, ensuring consistent results in every application.

2. Compact and Portable Design:
   With a lightweight and ergonomic design, this rail drilling machine is easy to transport and maneuver, making it ideal for use in remote locations or limited spaces.

3. Precision Rail Drilling:
   Designed specifically for railway tracks, the machine ensures precise hole alignment and accuracy, reducing the risk of errors and increasing operational efficiency.

4. Quick Clamping System:
   The integrated clamping mechanism securely fastens the machine to the rail, minimizing vibration and ensuring stability during drilling operations.

5. Durable Construction:
   Built with high-quality, wear-resistant materials, the machine is engineered to withstand harsh environments and deliver long-lasting performance.

6. Adjustable Feed System:
   The adjustable feed system allows smooth and controlled drilling, ensuring optimal performance and reducing wear on drill bits.

7. Fuel Efficiency:
   The gasoline engine is designed to offer efficient fuel consumption, providing longer operation times and reducing overall costs.

Applications:

• Drilling holes for rail joints, signal installations, or track maintenance
• Use in railway, tramway, and metro infrastructure projects

Specifications Overview:

• Engine Type: Gasoline
• Drilling Capacity: Varies based on rail type (typically up to 32 mm in diameter)
• Weight: Lightweight for portability (typically around 18-20 kg)
• Fuel Efficiency: Optimized for extended operation

The Rotabroach Gasoline Engine Rail Drilling Machine is a dependable and efficient solution for professionals seeking a portable, high-performance tool for rail drilling tasks. Its robust construction, precision engineering, and ease of use make it an essential piece of equipment for railway maintenance and infrastructure projects.

TECHNICAL SPECIFICATION
Model Number                        RD074
Motor Specification                 Honda 4 stroke, 1400W
Displacement                          57.0 cm³
No Load RPM                         320 RPM
Max Hole Cutting Capacity     ø1 37/64 inch

Overall Dimensions
Height:                                    16 17/32 inch
Width:                                     16 17/32 inch with Capstan
Length:                                    21 17/64 inch
Machine Weight                      43 lb
Safety Features                       Centrifugal Clutch
